EVO Rack/Tower 1KVA
High Reliability:
Online double conversion, 0.99 input power factor, wide voltage (110-286Vac) & frequency range.
- Recommended for Data Centers, Local Area Network (LAN ), Electro-medical, Industry processes, Virtual servers, Pellet stoves, Thermo-fireplaces, Boilers for home heating
- Intelligent slot for SNMP card o Dry Contact
- Compatibility with generating set
- Battery charging system managed by microprocessor
- Frequency converter mode

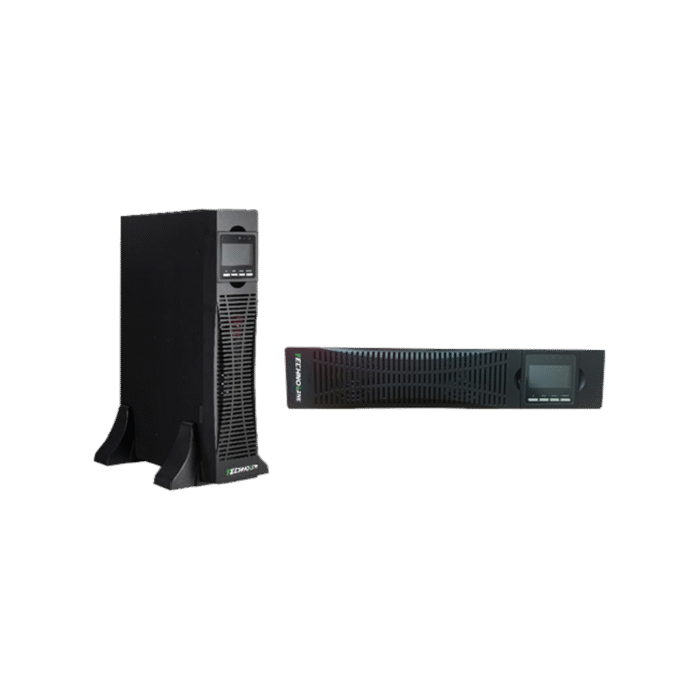

- Convertible format (Rack 19″ or Tower) with adjustable display
- Hot Swap batteries
| MODEL |
EVO1000RT-MM |
EVO2000RT-MM |
EVO3000RT-MM |
|||
| Capacity |
1000VA/ 900W |
2000VA/ 1800W |
3000VA/ 2700W |
|||
| INPUT | ||||||
| Nominal voltage |
208/220/230/240Vac |
|||||
| Input voltage range |
110~300Vac (176~280Vac @ 100% load) |
|||||
| Frequency range |
40~70Hz (50/60Hz Auto-Sensing) |
|||||
| Power factor |
≥0.99 |
|||||
| OUTPUT | ||||||
| Output voltage |
208/220/230/240Vac |
|||||
| Power factor |
0.9 |
|||||
| Voltage regulation |
±1% |
|||||
| Output frequency | Line Mode |
46~54Hz or 56~64Hz |
||||
| Bat. Mode |
(50/60±0.1%)Hz |
|||||
| Crest factor |
3:01 |
|||||
| Harmonic distortion (THDv) |
≤3% Linear load |
|||||
|
≤5% Non linear load |
||||||
| Transfer time | AC mode to Bat.Mode |
0ms |
||||
| Inverter to Bypass |
4ms (Typical) |
|||||
| Output waveform |
Pure Sinewave |
|||||
| EFFICIENCY | ||||||
| AC mode |
89% |
91% |
92% |
|||
| Battery mode |
85% |
87% |
88% |
|||
| BATTERY | ||||||
|
Battery number |
2 | 4 |
6 |
|||
| Capacity (Standard unit) |
9Ah/12V |
|||||
| Typical recharging time |
4 hours (to 90% of full capacity) |
|||||
| Charging voltage |
27.4Vdc±1% |
54.8Vdc±1% |
109.6Vdc±1% |
|||
| Charging current (Max) |
1Ah |
|||||
| INDICATORS | ||||||
| LED display |
Line mode,Bat.mode,ECO mode,Bypass mode,Battery low voltage,Overload & UPS fault |
|||||
| LCD display |
Input voltage,Input frequency,Output voltage,Output frequency,Load percentage, |
|||||
|
Battery voltage,Inner temperature& Remaining battery backup time |
||||||
| ALARM | ||||||
| Battery mode |
Beeping every 4 seconds |
|||||
| Battery low |
Beeping every second |
|||||
| Overload |
Beeping twice every second |
|||||
| Fault |
Continously beeping |
|||||
| PHYSICAL | ||||||
| Dimension W x D×H (mm) |
440 x 325 x 86.5 |
440 x 460 x 86.5 |
440 x 600 x 86.5 |
|||
| Net weight (kg) |
11.3 |
19.6 |
26.2 |
|||
| ENVIRONMENT | ||||||
| Operating temperature |
0℃~40℃ |
|||||
| Storage temperature |
-25℃~55℃ |
|||||
| Humidity range |
20~95%RH @ 0~40℃ (Non condensing) |
|||||
| Altitude |
<1500m,derating required when>1500m |
|||||
| Noise level |
<50db at 1 Meter |
|||||
| STANDARDS | ||||||
| Safety |
IEC/EN62040-1,IEC/EN62477-1 |
|||||
| EMC |
IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
|||||
